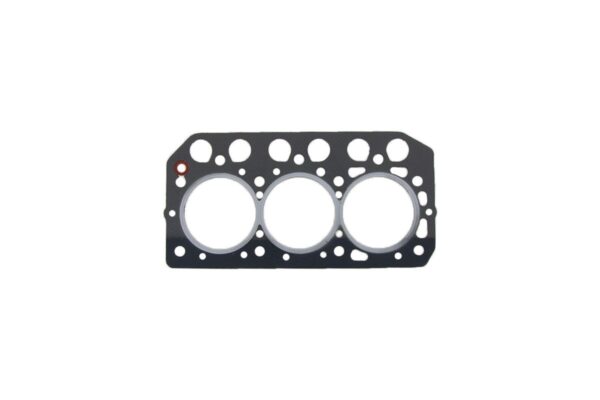

Guarnizione testata Mitsubishi MVS3L, MVS3L2, S3L, S3L2, Captain, Startrac, Etc.,

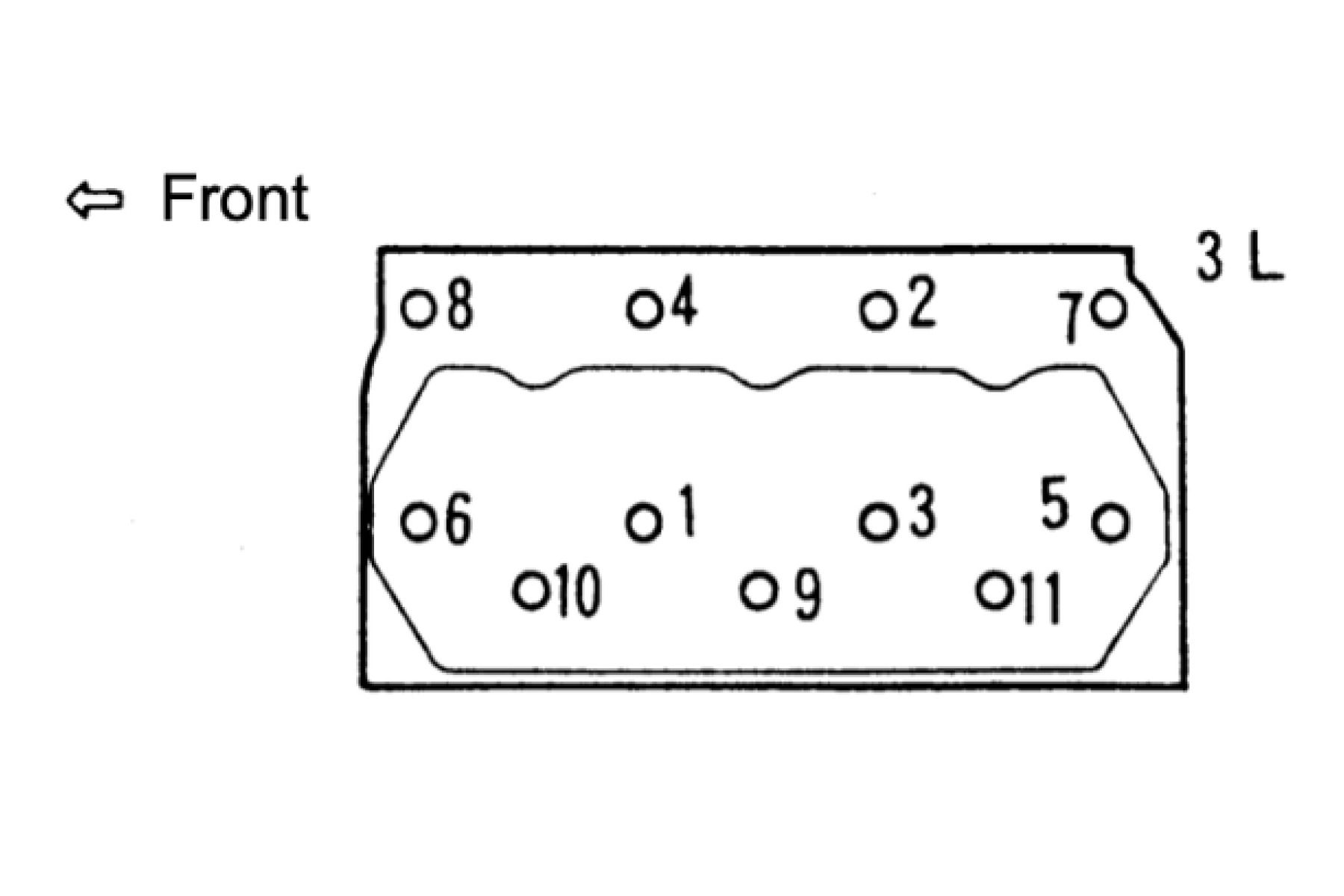

Tensione di serraggio dei bulloni della testa:
9 ± 0.5 kgf m (65 ± 4 lbf ft) [88 ± 5 N m]
Gioco delle valvole: 025mm

Per Kit Guarnizioni testata vedere TP11879

Agritech:
AGT-25,

AMI:
GS009M32S,

Antonio Carraro:
Panther 26M, Panther 26H,

Avenger:
26,

Bredenoord:
BCM 8-50SP E2, BCM 11-50 E2, BCM 11-60,
BRMI10,

Broadcrown:
BCM8-50SPE2, BCM11-50E2, BCM11-60, BCM11-60SP, BCM 11-60SP, BCM 11-60SP T4,

Captain:
263, 263H, 273, 283, 283H, 303, 303H, 2532,

Caterpillar:
302.5C, 303CR, 303SR,

Cub Cadet:
7000, 7200, 7205, 7260, 7265,

Eisemann:
P11000DE, P11001DE,
T11000DE, T11001DE,

Farmtrac:
FT22, FT26, FT30,

Geko:
DH/910MF, DH/S10, DH/S 10 MF,
P11000DE, P11001DE,
T11000DE, T11001DE,

Giese:
HB 5-10, HB 7.5-15,

Hanix:
H22A, H24A, H26C, H36C, H36CR,

Hinomoto:
Startrac 263, Startrac 263H, Startrac 273,

Hyundai:
R25Z-9A, R27Z-9, R28-7, R35-7, R36N-7, R55-7,

Ingersoll rand:
G11, G12,

J.F. Marine Power:
JF10-1500,

Kubota:
EK1-261,
LS Tractor:
J23, J27, J2020 H, J2023H, J2030H,
XG3025,
XJ20, XJ25, XJ2025,

Mahindra:
1526, 2015, 2216, 2415, 2516, 2615, 2816, 3016,
Max 22, Max 24, Max 25, Max 26, Max 28,

Massey Ferguson:
6026, 6028,

Mastervolt:
Whisper 8000,

Mitsubishi:
GS16, GS18, GS20, GS21, GS23, GS25, GS160, GS180, GS182, GS200, GS202, GS210, GS230, GS232, GS235, GS250,
GX3600,
MM25T, MM30CR, MM30CR2, MM30SR, MM30T,
MT25 (3Cil.), MT28 (3Cil.), MT36, MT160, MT161, MT165, MT170, MT181, MT190, MT200, MT201, MT220, MT221, MT230D, MT231, MT240, MT241, MT260D,
MTU26,
MTZ18, MTZ20, MTZ21, MTZ23, MTZ200,
TU73D, TU73E, TU73EX,
VS211, VS231, VS251G, VS281G,
VSS26, VSS30,

Mitsubishi Engine:
MVS3L, MVS3L2,
S3L, S3L2,

Montana:
T2334, T2734,

Nagano:
CX26-3,
NA90A, NA90ZA, NA120A,
NB30,
NS25-3, NS35-3,
NUL090-3, NUL120-3,
NUZ090D,

New Holland:
Boomer 20, Boomer 24, Boomer 25,
Simba 30

Nilfisk Alto:
Contractor Silent,

Optimes:
Tiger 8/16 PPN,

Pel Job:
EB25.4, EB30.4, EB250, EB300, EB306,

Preet:
Avenger 26,

Schaeff / Terex:
TC25,

SDMO:
Alize 900 SDE, Alize 11500 STDE,
RL12,
T9KM, T11U, T12K, T11UCM, T20 HK,
TM11.5, TM11.5K, TM20HK,
TN15, TN16, TN20,

Sole Diesel:
10GS, 10GSC,
G-10M-15, G-10T-15,
Mini 33, Mini 34,

Solis:
Solis 24, Solis 26,

Startrac:
26, 26H, 263, 263H, 273,

Summit:
TX25H,

Tafe:
6022, 6028,

Technogen:
MI12/4SX, MI12T/4SX,

Teksan:
TJ9MS, TJ11MS, TJ20MS,

Toro:
RM5300-D,

Triton:
39005,

Tym:
T233, T234, T273, T293,

Volvo:
EC25, EC30,

Weidemann:
1050D/M, 1055D/M, 1504D/M,

Whisper Power:
SQ8, SQ9,5, SQ10, SQ11,
